8003

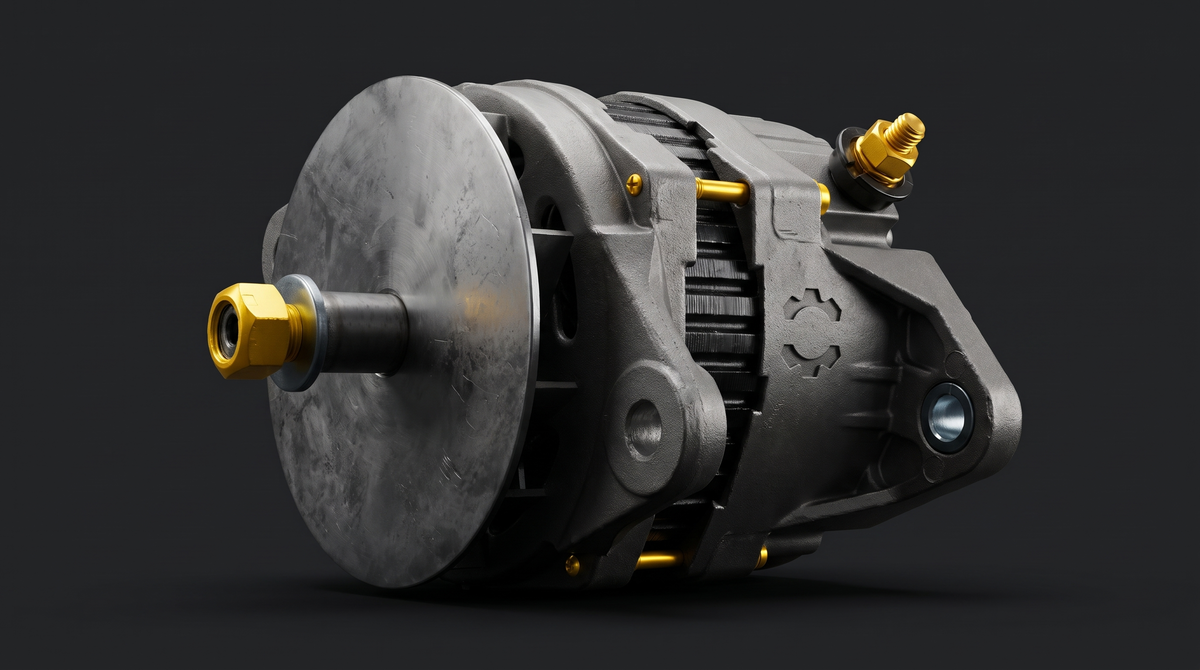

Alternator 8003 - Champion 710A 1994-1998 & More
$249.00
Alternator SKU 8003
Compatible with: Champion 710A 1994-1998; Champion 716A 1994-1998; Consolidated Diesel 4B 1992; Consolidated Diesel 6B 1992; Consolidated Diesel 6C 1992; Cummins Engines K Series 1991-1992; Samsung Se130 1992-1998; Samsung Se170 1992-1998; Samsung Se210 1992-1998; Samsung Se240 1992-1998; Samsung Se280 1992-1998; Samsung Se350 1992-1998; Samsung Se450 1992-1998; Timberjack 2618 1995; Timberjack 2628 1995; Timberjack 608 1995; Timberjack 608 Harvester 1995; Timberjack 618 1995; Timberjack 628 1995; Timberjack L300 1995; Timberjack Sunfire 1995; Timberjack Sw1 1995; Volvo Ec140 1995; Volvo Ec210; Volvo Ec240; Volvo Ec290; Volvo Ec360; Volvo Ec460
Makes: Champion, Consolidated Diesel, Cummins Engines, Samsung, Timberjack, Volvo
Product appearance and finish may vary. Verify Buyers Guide for fitment.
Note: Cummins 5.9 21SI Delco ;Exc.Europe Apps. | 3.9L 21SI | 5.9L 21SI | 8.3L 21SI | DR 21SI;24V/70A ; Exc.Europe Apps. | Cummins 3.9 Dsl Delco System ; Exc. Europe Apps. | Cummins 5.9 Dsl Delco System ; Exc. Europe Apps. | Cummins 8.3 Dsl Delco System ; Exc. Europe Apps. | Cummins L-10 Delco System ; Exc. Europe Apps. | Cummins M11 Delco System ; Exc. Europe Apps. | (95-On) Cummins 8.3L Diesel DR 21SI;24V/70A ; Exc.Europe Apps. | (95-On) Cummins 5.9L Diesel DR 21SI;24V/70A ; Exc.Europe Apps. | (95-On) DR 21SI;24V/70A ; Exc.Europe Apps. | (98-On) Cummins B3-9C DR 21SI;24V/70A ; Exc.Europe Apps. | (98-On) Cummins B5-9C DR 21SI;24V/70A ; Exc.Europe Apps. | (98-On) Cummins C8-3C DR 21SI;24V/70A ; Exc.Europe Apps. | (98-On) Cummins M11C DR 21SI;24V/70A ; Exc.Europe Apps.
Note: Product appearance may vary from the image shown. Fitment and compatibility remain as specified.
Replacement
DELCO:10459261, DELCO:10461235, PRESTOLITE:110-446, DELCO:1117897, DELCO:1117900, DELCO:1117944, LESTER:12749, DELCO:19010108, DELCO:19010111, DELCO:19010182, DELCO:19010185, DELCO:19010199, DELCO:19010200, PIC:235-100, PIC:240-865, PIC:240-865A, PIC:240-866, PIC:240-866A, PIC:240-867, PIC:240-886, LESTER:7642, LESTER:8003, LESTER:8007, LESTER:8034, PRESTOLITE:MDA3946
Application Summary
See the compatible vehicle applications listed above. Verify year, make, model and engine before ordering.
Specifications
| SPECS | 70 Amp/24 Volt, CW, w/o Pulley, Neg. Grd., 1-Wire System |
| SPECS FOR | Delco 21SI Series IR/EF |
| MFR | DELCO |
| MFR SERIES | 21SI |
| DESIGN | IR/EF |
| VOLTAGE | 24 |
| AMPERAGE | 70 |
| ROTATION | CW |
| PLUG CLOCK | 12:00 Plug Clock |
| PULLEY CLASS | w/o Pulley |
| NOTE 1 | Neg. Grd. |
| NOTE 2 | 1-Wire System |
| NOTE 3 | With Anti-Feedback Diode |
| NOTE 4 | Fully interchangeable with 8367N (22SI) |
| DIM 1 | M6 x 1.0 Batt. Term. |
| DIM 2 | Universal R-Term. |
| DIM 3 | M4 I-Term. |
| FEATURE 1 | 100% New |
| FEATURE 2 | WAI-Transpo premium rectifier & regulator |
| FEATURE 3 | Premium, hi-temperature WBD 6305 bearing |
| FEATURE 4 | Long-shaft rotor & longer needle bearing provides more bearing surface to spread the load for longer lasting service |
| FEATURE 5 | 1/4-20 thru bolts - larger than OE 10-24 bolts |
| FEATURE 6 | Rotor coil leads are epoxied to prevent vibration failure |
| FEATURE 7 | Hi-temperature class-H windings |
| FEATURE 8 | Precision CNC machined castings |
| FEATURE 9 | OE performance output curve |
| AC TAP Y/N | Y |
| BRUSHLESS | No |
| DIST BTWN MTG FT MM H | 102 |
| DE FT TO PULLEY 1ST GRV MM K | 16.5 |
| DE TO ROTOR SHFT END MM L | 70.9 |
| GROUND | N |
| MTG CONFIG CODE | C |
| MOUNT TYPE | J180 |
| PULLEY GROOVE OD | N/A |
| DIST BTWN MTG EAR MM | 102 |
| SPLIT MTG EAR THK MM | 20 |
| POLARITY | B+ |
| BRUSHLESS DESIGN | N/A |
| ONE WIRE CAPABLE | Yes |
| COOLING METHOD | Alternator cooling via external fan |
Interchange / Lester Numbers
12749, 7642, 8003, 8007, 8034
WAI Part Number: 8003N
